MVDR-040/060/090/120/140/180/220

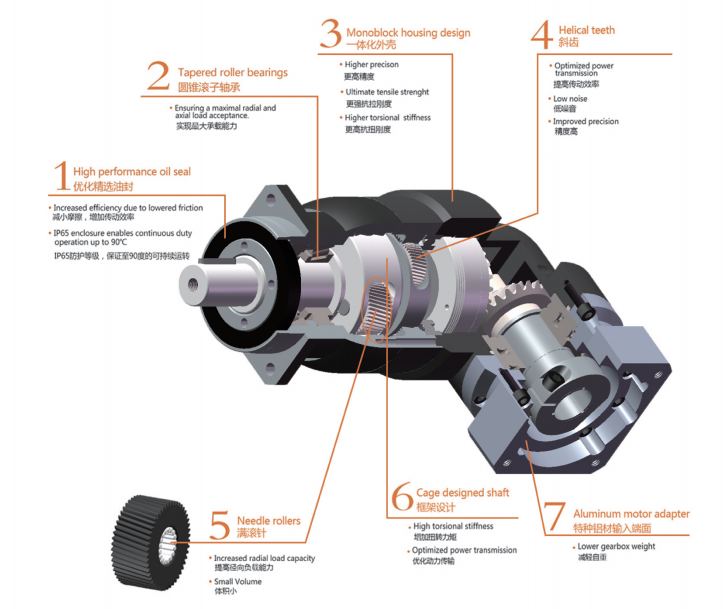

A high-performance right-angle solution for servo applications that keeps MLD'sdesign and characteristics.

Here’s the optimized table format for the functional parameters you provided:

Let me know if you need any changes or further optimizations!

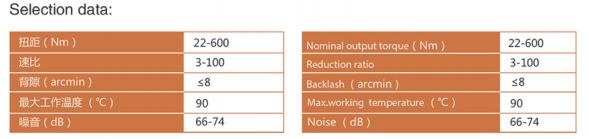

  • Nominal output torque(Nm)

    22-600

  • Reduction ratio

    3-100

  • Backlash(arcmin)

    ≤8

  • MAX working temperature(℃)

    90

  • Noise(dB)

    66-74
